Presentation-Layer-Test

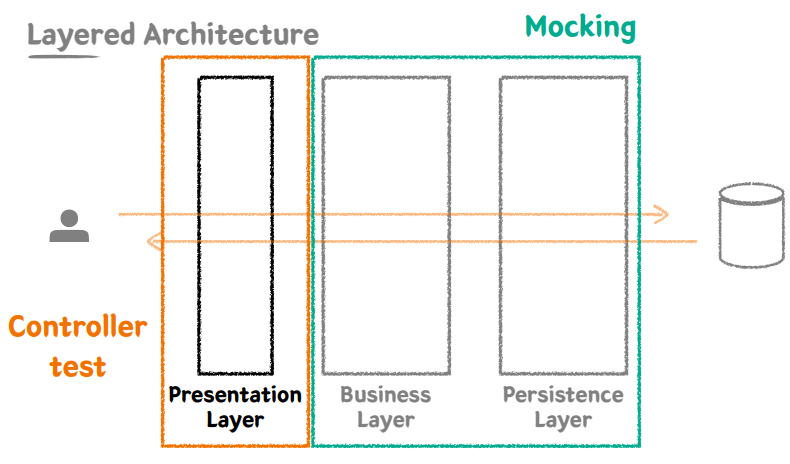

Presentation-Layer란?

  • 외부 세계의 요청을 가장 먼저 받는 계층
  • 파라미터에 대한 최소한의 검증을 수행한다

Alt text

MockMvc

  • Mock(가짜) 객체를 사용해 스프링 MVC 동작을 재현할 수 있는 테스트 프레임워크

요구사항

  • 관리자 페이지에서 신규 상품을 등록할 수 있다.
  • 상품명, 상품 타입, 판매 상태, 가격 등을 입력받는다.

구현 순서

  • ProductController createProduct
    • ProductCreateRequest 생성
    • ProductService createProduct
      • ProductRepositoty findLatestProduct
        • ProductRepositoryTest findLatestProductNumber
        • ProductRepositoryTest findLatestProductNumberWhenProductIsEmpty
      • ProductServiceTest createProduct
        • RED
          • ProductCreateRequest
          • ProductService createProduct return null
        • GREEN
          • ProductServiceTest createProduct
          • ProductService createProduct 빌더 return 하드코딩
        • REFACTOR
          • ProductService createNextProductNumber
          • ProductCreateRequest toEntity()
          • ProductServiceTest createProduct
      • ProductServiceTest createProductWhenProductIsEmpty(상품이 하나도 없을때 등록시)
        • ProductService createNextProductNumber
        • ProductServiceTest tearDown(Clear)
    • ProductControllerTest createProduct(@WebMvcTest) : 컨트롤러 테스트
      • given, when/then
      • MockMvc
      • @WebMvcTest
      • @MockBean(service 의존성)
      • spring/config/JpaAuditingConfig (@EnableJpaAuditing 분리)
    • gladle
      • dependencies impolementation ‘org.springframework.boot:spring-boot-starter-validation’
    • ProductCreateRequest @NotNull, @NotBlank, @Positive // 검증 상세 처리
    • ProductController createProduct @Valid // Controller 처리
      • ApiResponse // 공통 리턴 형식 정의
    • ApiControllerAdvicde(@ControllerAdvice) // validation 에러 처리
      • @ExceptionHandler(BindException.class)
    • ProductControllerTest createProductWithoutType // valid 에러 검증
    • ProductControllerTest createProductWithoutSellingStatus // 판매 상태 검
    • ProductControllerTest createProductWithoutName // 상품 이름 검증
    • ProductControllerTest createProductWithoutZeroPrice // 상품 가격 양수 검증
  • ProductControllerTest getSellingProducts
    • given
    • when
    • then
  • OrderControllerTest createOrder // 신규 주문 등록
  • OrderControllerTest createOrderWithEmptyProductNumbers // 신규 주문 등록시 상품번호 1개 이상
  • REFACTOR
    • OrderCreateServiceRequest // 서비스 DTO를 따로 만든다 Contoller DTO만 Valid
    • ProductCreateServiceRequest

구현

ProductController.java

@RequiredArgsConstructor
@RestController
public class ProductController {

    private final ProductService productService;

    @PostMapping("/api/v1/products/new")
    public ApiResponse<ProductResponse> createProduct(@Valid @RequestBody ProductCreateRequest request) {
        return ApiResponse.ok(productService.createProduct(request.toServiceRequest()));
    }

    @GetMapping("/api/v1/products/selling")
    public ApiResponse<List<ProductResponse>> getSellingProducts() {
        return ApiResponse.ok(productService.getSellingProducts());
    }

}

ProductCreateRequest.java

@Getter
@NoArgsConstructor
public class ProductCreateRequest {

    @NotNull(message = "상품 타입은 필수입니다.")
    private ProductType type;

    @NotNull(message = "상품 판매상태는 필수입니다.")
    private ProductSellingStatus sellingStatus;

    @NotBlank(message = "상품 이름은 필수입니다.")
    private String name;

    @Positive(message = "상품 가격은 양수여야 합니다.")
    private int price;

    @Builder
    private ProductCreateRequest(ProductType type, ProductSellingStatus sellingStatus, String name, int price) {
        this.type = type;
        this.sellingStatus = sellingStatus;
        this.name = name;
        this.price = price;
    }

    public ProductCreateServiceRequest toServiceRequest() {
        return ProductCreateServiceRequest.builder()
            .type(type)
            .sellingStatus(sellingStatus)
            .name(name)
            .price(price)
            .build();
    }

}

ProductService.java

@Transactional(readOnly = true)
@RequiredArgsConstructor
@Service
public class ProductService {

    private final ProductRepository productRepository;

    @Transactional
    public ProductResponse createProduct(ProductCreateServiceRequest request) {
        String nextProductNumber = createNextProductNumber();

        Product product = request.toEntity(nextProductNumber);
        Product savedProduct = productRepository.save(product);

        return ProductResponse.of(savedProduct);
    }

    public List<ProductResponse> getSellingProducts() {
        List<Product> products = productRepository.findAllBySellingStatusIn(ProductSellingStatus.forDisplay());

        return products.stream()
                .map(ProductResponse::of)
                .collect(Collectors.toList());
    }

    private String createNextProductNumber() {
        String latestProductNumber = productRepository.findLatestProductNumber();
        if (latestProductNumber == null) {
            return "001";
        }

        int latestProductNumberInt = Integer.parseInt(latestProductNumber);
        int nextProductNumberInt = latestProductNumberInt + 1;

        return String.format("%03d", nextProductNumberInt);
    }

}

ProductRepository.java

@Repository
public interface ProductRepository extends JpaRepository<Product, Long> {

    /**
     * select *
     * from product
     * where selling_status in ('SELLING', 'HOLD');
     */
    List<Product> findAllBySellingStatusIn(List<ProductSellingStatus> sellingStatuses);

    List<Product> findAllByProductNumberIn(List<String> productNumbers);

    @Query(value = "select p.product_number from product p order by id desc limit 1", nativeQuery = true)
    String findLatestProductNumber();

}

ProductRepositoryTest.java

@ActiveProfiles("test")
//@SpringBootTest
@DataJpaTest
class ProductRepositoryTest {

    @Autowired
    private ProductRepository productRepository;

    @DisplayName("원하는 판매상태를 가진 상품들을 조회한다.")
    @Test
    void findAllBySellingStatusIn() {
        // given
        Product product1 = createProduct("001", HANDMADE, SELLING, "아메리카노", 4000);
        Product product2 = createProduct("002", HANDMADE, HOLD, "카페라떼", 4500);
        Product product3 = createProduct("003", HANDMADE, STOP_SELLING, "팥빙수", 7000);
        productRepository.saveAll(List.of(product1, product2, product3));

        // when
        List<Product> products = productRepository.findAllBySellingStatusIn(List.of(SELLING, HOLD));

        // then
        assertThat(products).hasSize(2)
                .extracting("productNumber", "name", "sellingStatus")
                .containsExactlyInAnyOrder(
                        tuple("001", "아메리카노", SELLING),
                        tuple("002", "카페라떼", HOLD)
                );
    }

    @DisplayName("상품번호 리스트로 상품들을 조회한다.")
    @Test
    void findAllByProductNumberIn() {
        // given
        Product product1 = createProduct("001", HANDMADE, SELLING, "아메리카노", 4000);
        Product product2 = createProduct("002", HANDMADE, HOLD, "카페라떼", 4500);
        Product product3 = createProduct("003", HANDMADE, STOP_SELLING, "팥빙수", 7000);
        productRepository.saveAll(List.of(product1, product2, product3));

        // when
        List<Product> products = productRepository.findAllByProductNumberIn(List.of("001", "002"));

        // then
        assertThat(products).hasSize(2)
                .extracting("productNumber", "name", "sellingStatus")
                .containsExactlyInAnyOrder(
                        tuple("001", "아메리카노", SELLING),
                        tuple("002", "카페라떼", HOLD)
                );
    }

    @DisplayName("가장 마지막으로 저장한 상품의 상품번호를 읽어온다.")
    @Test
    void findLatestProductNumber() {
        // given
        String targetProductNumber = "003";

        Product product1 = createProduct("001", HANDMADE, SELLING, "아메리카노", 4000);
        Product product2 = createProduct("002", HANDMADE, HOLD, "카페라떼", 4500);
        Product product3 = createProduct(targetProductNumber, HANDMADE, STOP_SELLING, "팥빙수", 7000);
        productRepository.saveAll(List.of(product1, product2, product3));

        // when
        String latestProductNumber = productRepository.findLatestProductNumber();

        // then
        assertThat(latestProductNumber).isEqualTo(targetProductNumber);
    }

    @DisplayName("가장 마지막으로 저장한 상품의 상품번호를 읽어올 때, 상품이 하나도 없는 경우에는 null을 반환한다.")
    @Test
    void findLatestProductNumberWhenProductIsEmpty() {
        // when
        String latestProductNumber = productRepository.findLatestProductNumber();

        // then
        assertThat(latestProductNumber).isNull();
    }

    private Product createProduct(String productNumber, ProductType type, ProductSellingStatus sellingStatus, String name, int price) {
        return Product.builder()
                .productNumber(productNumber)
                .type(type)
                .sellingStatus(sellingStatus)
                .name(name)
                .price(price)
                .build();
    }

}

ProductServiceTest.java

@ActiveProfiles("test")
@SpringBootTest
class ProductServiceTest {

    @Autowired
    private ProductService productService;

    @Autowired
    private ProductRepository productRepository;

    @AfterEach
    void tearDown() {
        productRepository.deleteAllInBatch();
    }

    @DisplayName("신규 상품을 등록한다. 상품번호는 가장 최근 상품의 상품번호에서 1 증가한 값이다.")
    @Test
    void createProduct() {
        // given
        Product product = createProduct("001", HANDMADE, SELLING, "아메리카노", 4000);
        productRepository.save(product);

        ProductCreateRequest request = ProductCreateRequest.builder()
                .type(HANDMADE)
                .sellingStatus(SELLING)
                .name("카푸치노")
                .price(5000)
                .build();

        // when
        ProductResponse productResponse = productService.createProduct(request);

        // then
        assertThat(productResponse)
                .extracting("productNumber", "type", "sellingStatus", "name", "price")
                .contains("002", HANDMADE, SELLING, "카푸치노", 5000);

        List<Product> products = productRepository.findAll();
        assertThat(products).hasSize(2)
                .extracting("productNumber", "type", "sellingStatus", "name", "price")
                .containsExactlyInAnyOrder(
                        tuple("001", HANDMADE, SELLING, "아메리카노", 4000),
                        tuple("002", HANDMADE, SELLING, "카푸치노", 5000)
                );
    }

    @DisplayName("상품이 하나도 없는 경우 신규 상품을 등록하면 상품번호는 001이다.")
    @Test
    void createProductWhenProductsIsEmpty() {
        // given
        ProductCreateRequest request = ProductCreateRequest.builder()
                .type(HANDMADE)
                .sellingStatus(SELLING)
                .name("카푸치노")
                .price(5000)
                .build();

        // when
        ProductResponse productResponse = productService.createProduct(request);

        // then
        assertThat(productResponse)
                .extracting("productNumber", "type", "sellingStatus", "name", "price")
                .contains("001", HANDMADE, SELLING, "카푸치노", 5000);

        List<Product> products = productRepository.findAll();
        assertThat(products).hasSize(1)
                .extracting("productNumber", "type", "sellingStatus", "name", "price")
                .contains(
                        tuple("001", HANDMADE, SELLING, "카푸치노", 5000)
                );
    }

    private Product createProduct(String productNumber, ProductType type, ProductSellingStatus sellingStatus, String name, int price) {
        return Product.builder()
                .productNumber(productNumber)
                .type(type)
                .sellingStatus(sellingStatus)
                .name(name)
                .price(price)
                .build();
    }

}

ProductControllerTest.java

@WebMvcTest(controllers = ProductController.class)
class ProductControllerTest {

    @Autowired
    private MockMvc mockMvc;

    @Autowired
    private ObjectMapper objectMapper;

    @MockBean // 부트 3.4.0 부터 @MockitoBean 으로 대체
    private ProductService productService;

    @DisplayName("신규 상품을 등록한다.")
    @Test
    void createProduct() throws Exception {
        // given
        ProductCreateRequest request = ProductCreateRequest.builder()
            .type(ProductType.HANDMADE)
            .sellingStatus(ProductSellingStatus.SELLING)
            .name("아메리카노")
            .price(4000)
            .build();

        // when // then
        mockMvc.perform(
                post("/api/v1/products/new")
                    .content(objectMapper.writeValueAsString(request))
                    .contentType(MediaType.APPLICATION_JSON)
            )
            .andDo(print())
            .andExpect(status().isOk());
    }

    @DisplayName("신규 상품을 등록할 때 상품 타입은 필수값이다.")
    @Test
    void createProductWithoutType() throws Exception {
        // given
        ProductCreateRequest request = ProductCreateRequest.builder()
            .sellingStatus(ProductSellingStatus.SELLING)
            .name("아메리카노")
            .price(4000)
            .build();

        // when // then
        mockMvc.perform(
                post("/api/v1/products/new")
                    .content(objectMapper.writeValueAsString(request))
                    .contentType(MediaType.APPLICATION_JSON)
            )
            .andDo(print())
            .andExpect(status().isBadRequest())
            .andExpect(jsonPath("$.code").value("400"))
            .andExpect(jsonPath("$.status").value("BAD_REQUEST"))
            .andExpect(jsonPath("$.message").value("상품 타입은 필수입니다."))
            .andExpect(jsonPath("$.data").isEmpty())
        ;
    }

    @DisplayName("신규 상품을 등록할 때 상품 판매상태는 필수값이다.")
    @Test
    void createProductWithoutSellingStatus() throws Exception {
        // given
        ProductCreateRequest request = ProductCreateRequest.builder()
            .type(ProductType.HANDMADE)
            .name("아메리카노")
            .price(4000)
            .build();

        // when // then
        mockMvc.perform(
                post("/api/v1/products/new")
                    .content(objectMapper.writeValueAsString(request))
                    .contentType(MediaType.APPLICATION_JSON)
            )
            .andDo(print())
            .andExpect(status().isBadRequest())
            .andExpect(jsonPath("$.code").value("400"))
            .andExpect(jsonPath("$.status").value("BAD_REQUEST"))
            .andExpect(jsonPath("$.message").value("상품 판매상태는 필수입니다."))
            .andExpect(jsonPath("$.data").isEmpty())
        ;
    }

    @DisplayName("신규 상품을 등록할 때 상품 이름은 필수값이다.")
    @Test
    void createProductWithoutName() throws Exception {
        // given
        ProductCreateRequest request = ProductCreateRequest.builder()
            .type(ProductType.HANDMADE)
            .sellingStatus(ProductSellingStatus.SELLING)
            .price(4000)
            .build();

        // when // then
        mockMvc.perform(
                post("/api/v1/products/new")
                    .content(objectMapper.writeValueAsString(request))
                    .contentType(MediaType.APPLICATION_JSON)
            )
            .andDo(print())
            .andExpect(status().isBadRequest())
            .andExpect(jsonPath("$.code").value("400"))
            .andExpect(jsonPath("$.status").value("BAD_REQUEST"))
            .andExpect(jsonPath("$.message").value("상품 이름은 필수입니다."))
            .andExpect(jsonPath("$.data").isEmpty())
        ;
    }

    @DisplayName("신규 상품을 등록할 때 상품 가격은 양수이다.")
    @Test
    void createProductWithZeroPrice() throws Exception {
        // given
        ProductCreateRequest request = ProductCreateRequest.builder()
            .type(ProductType.HANDMADE)
            .sellingStatus(ProductSellingStatus.SELLING)
            .name("아메리카노")
            .price(0)
            .build();

        // when // then
        mockMvc.perform(
                post("/api/v1/products/new")
                    .content(objectMapper.writeValueAsString(request))
                    .contentType(MediaType.APPLICATION_JSON)
            )
            .andDo(print())
            .andExpect(status().isBadRequest())
            .andExpect(jsonPath("$.code").value("400"))
            .andExpect(jsonPath("$.status").value("BAD_REQUEST"))
            .andExpect(jsonPath("$.message").value("상품 가격은 양수여야 합니다."))
            .andExpect(jsonPath("$.data").isEmpty())
        ;
    }

    @DisplayName("판매 상품을 조회한다.")
    @Test
    void getSellingProducts() throws Exception {
        // given
        List<ProductResponse> result = List.of();

        when(productService.getSellingProducts()).thenReturn(result);

        // when // then
        mockMvc.perform(
                get("/api/v1/products/selling")
            )
            .andDo(print())
            .andExpect(status().isOk())
            .andExpect(jsonPath("$.code").value("200"))
            .andExpect(jsonPath("$.status").value("OK"))
            .andExpect(jsonPath("$.message").value("OK"))
            .andExpect(jsonPath("$.data").isArray());
    }

}

JpaAuditingConfig.java

// 메인 Application 에서 뺴고 새로 config 클래스를 작성해야 테스트시 에러가 없다.
@EnableJpaAuditing
@Configuration
public class JpaAuditingConfig {
}

gradle

dependencies {
    ...
    implementation 'org.springframework.boot:spring-boot-starter-validation'
    ...
}

ApiResponse.java

@Getter
public class ApiResponse<T> {

    private int code;
    private HttpStatus status;
    private String message;
    private T data;

    public ApiResponse(HttpStatus status, String message, T data) {
        this.code = status.value();
        this.status = status;
        this.message = message;
        this.data = data;
    }

    public static <T> ApiResponse<T> of(HttpStatus httpStatus, String message, T data) {
        return new ApiResponse<>(httpStatus, message, data);
    }

    public static <T> ApiResponse<T> of(HttpStatus httpStatus, T data) {
        return of(httpStatus, httpStatus.name(), data);
    }

    public static <T> ApiResponse<T> ok(T data) {
        return of(HttpStatus.OK, data);
    }

}

ApiControllerAdvice.java

@RestControllerAdvice
public class ApiControllerAdvice {

    @ResponseStatus(HttpStatus.BAD_REQUEST)
    @ExceptionHandler(BindException.class)
    public ApiResponse<Object> bindException(BindException e) {
        return ApiResponse.of(
            HttpStatus.BAD_REQUEST,
            e.getBindingResult().getAllErrors().get(0).getDefaultMessage(),
            null
        );
    }

}

OrderControllerTest.java

@WebMvcTest(controllers = OrderController.class)
class OrderControllerTest {

    @Autowired
    private MockMvc mockMvc;

    @Autowired
    private ObjectMapper objectMapper;

    @MockBean // 부트 3.4.0 부터 @MockitoBean 으로 대체
    private OrderService orderService;

    @DisplayName("신규 주문을 등록한다.")
    @Test
    void createOrder() throws Exception {
        // given
        OrderCreateRequest request = OrderCreateRequest.builder()
            .productNumbers(List.of("001"))
            .build();

        // when // then
        mockMvc.perform(
                post("/api/v1/orders/new")
                    .content(objectMapper.writeValueAsString(request))
                    .contentType(MediaType.APPLICATION_JSON)
            )
            .andDo(print())
            .andExpect(status().isOk())
            .andExpect(jsonPath("$.code").value("200"))
            .andExpect(jsonPath("$.status").value("OK"))
            .andExpect(jsonPath("$.message").value("OK"));
        ;
    }

    @DisplayName("신규 주문을 등록할 때 상품번호는 1개 이상이어야 한다.")
    @Test
    void createOrderWithEmptyProductNumbers() throws Exception {
        // given
        OrderCreateRequest request = OrderCreateRequest.builder()
            .productNumbers(List.of())
            .build();

        // when // then
        mockMvc.perform(
                post("/api/v1/orders/new")
                    .content(objectMapper.writeValueAsString(request))
                    .contentType(MediaType.APPLICATION_JSON)
            )
            .andDo(print())
            .andExpect(status().isBadRequest())
            .andExpect(jsonPath("$.code").value("400"))
            .andExpect(jsonPath("$.status").value("BAD_REQUEST"))
            .andExpect(jsonPath("$.message").value("상품 번호 리스트는 필수입니다."))
            .andExpect(jsonPath("$.data").isEmpty())
        ;
    }

}

OrderCreateServiceRequest.java

@Getter
@NoArgsConstructor
public class OrderCreateServiceRequest {

    private List<String> productNumbers;

    @Builder
    private OrderCreateServiceRequest(List<String> productNumbers) {
        this.productNumbers = productNumbers;
    }

}

ProductCreateServiceRequest.java

@Getter
@NoArgsConstructor
public class ProductCreateServiceRequest {

    private ProductType type;
    private ProductSellingStatus sellingStatus;
    private String name;
    private int price;

    @Builder
    private ProductCreateServiceRequest(ProductType type, ProductSellingStatus sellingStatus, String name, int price) {
        this.type = type;
        this.sellingStatus = sellingStatus;
        this.name = name;
        this.price = price;
    }

    public Product toEntity(String nextProductNumber) {
        return Product.builder()
            .productNumber(nextProductNumber)
            .type(type)
            .sellingStatus(sellingStatus)
            .name(name)
            .price(price)
            .build();
    }

}

tip
String.format(“%03d”, 변수);
ex : 9 > 009, 10 > 010

동시성 이슈
빈도수가 낮을 경우 : 시스템 상에서 재시도 약3회
빈도수가 높은 경우 : UUID

@Transactional(readOnly=true)

  • readOnly = true : 읽기전용
  • CRUD 에서 CUD 동작 X only Read
  • JPA : CUD 스냅샷 저장, 변경감지 X (성능 향상)
  • CQRS - Command(CUD) / Read 분리
  • 보통의 서비스는 Read가 훨씬 많음
  • 추천 : 서비스 상단에 @Transactional(readOnly=true), 메서드에서 CUD가 필요하다면 @Transactional

@WebMvcTest
컨트롤러 레이어만 띄우기 위해 관련 빈들만 띄움
사용법 : @WebMvcTest(controllers = 컨트롤러. class)

@MockBean(@Mock도 있음)
@WebMvcTest에서는 MockBean으로 안해주면 Service 못찾음 (부트 3.4.0 부터 @MockitoBean 으로 대체)

MockMvc 사용법 :

mockMvc.perform(MockMvcRequestBuilders.post("주소")
     .content(objectMapper.writeValueAsString(request)) // 직렬화
     .contentType(MediaType.APPLICATION_JSON)
)
.andExpect(MockMvcResultMatchers.status().isOk()); // 검증

org.springframework.boot:spring-boot-starter-validation

  • @NotNull(message=…) : yes : “ “, “”
  • @NotBlank : no : “ “, “”
  • @NotEmpty : ok : “ “, no : “”
  • @Positive : 양수만 가능
  • @PositiveOrZero : 양수와 0만 가능
  • @Negative : 음수만 가능
  • @NegativeOrZero : 음수와 0만 가능
  • Controller 메소드 @Valid
  • 에러 관리 @ControllerAdvice @ExceptionHandler(BindException.class) 공백 및 null둥 기본적인 검증만 pojo에서 처리 그외 디테일한 검증은 service단에서 추천

https://github.com/dadaok/practical-testing/tree/lesson5-9

© 2023 Lee. All rights reserved.
